Climatic Chamber

Climatic chambers are advanced testing systems used to simulate a wide range of temperature and humidity conditions in order to evaluate the reliability, durability, and performance of materials, components, and complete systems. Available in benchtop, reach-in, and walk-in configurations to suit every testing volume.

Some Essential Features of Climatic Chambers

Temperature Control

Wide temperature ranges (e.g., -70°C to +180°C).
Precise temperature regulation (±0.5°C or better).
Fast temperature ramp-up/down rates.

Humidity Control

Humidity range typically from 10% to 98% RH.
Control accuracy around ±1-3% RH.
Useful for testing corrosion, mold growth, or material expansion.

Programmable Controllers

Touchscreen interfaces.
Multi-step programmable profiles.

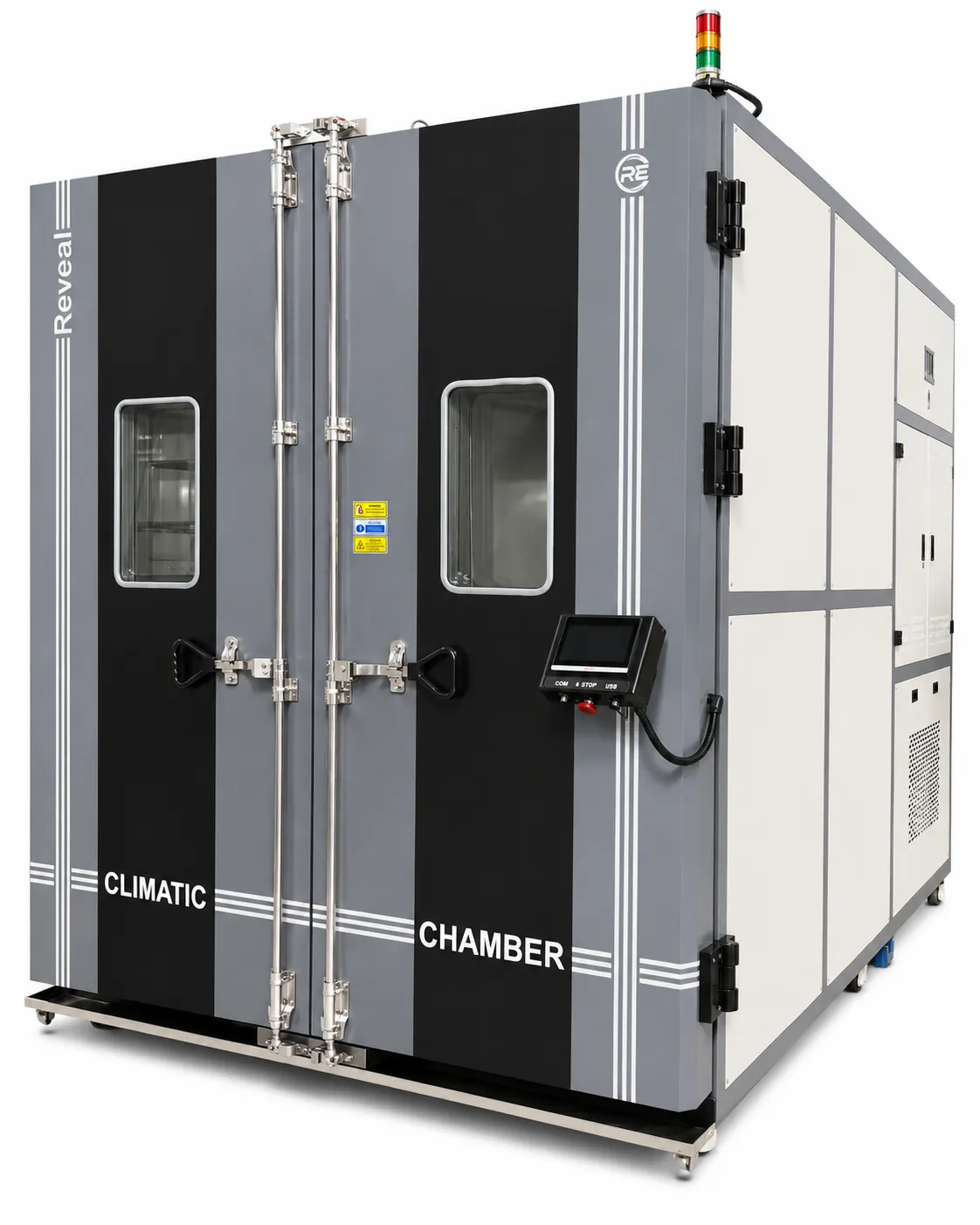

Walk-In Configurations (Optional)

Large double-door chambers for batch or full-size unit testing.
Ideal for automotive and aerospace assemblies.

Safety Features

Over-temperature protection.
Emergency shutoff systems.
Alarms for temperature or humidity deviations.

Data Logging & Reporting

Built-in data loggers.
USB or cloud export capability.
Graphing and trend analysis.

Compliance with Standards

Meets testing standards (e.g., ASTM, IEC, MIL-STD, ISO).

Size & Capacity Options

Benchtop models for small-scale testing.
Walk-in/drive-in chambers for large equipment or batch testing.

Standard Models

Equipment Model	Inner Size W×D×H (mm)	Testing Volume	Heating Rate	Cooling Rate	Temp Range	Humidity Range	Temp Uniformity	Refrigerant	Compressor
CC-0100	450×450×500	100L	2/3/5°C/Min	1/2/3°C/Min	-40 to +180°C	20-98%	±0.5-±1.0°C	R404A & R23	Copland/Bitzer
CC-0150	500×500×600	150L	2/3/5°C/Min	1/2/3°C/Min	-70 to +180°C	20-98%	±0.5-±1.0°C	R404A & R23	Copland/Bitzer
CC-0450	750×750×800	450L	7/10°C/Min	5°C/Min	-40 to +180°C	20-98%	±0.5-±1.0°C	R404A & R23	Copland/Bitzer
CC-0650	800×900×900	650L	15°C/Min	7°C/Min	-40 to +180°C	20-98%	±0.5-±1.0°C	R404A & R23	Copland/Bitzer
CC-1000	1000×1000×1000	1000L	20°C/Min (IEC)	10/15°C/Min (IEC)	-40 to +180°C	20-98%	±0.5-±1.0°C	R404A & R23	Copland/Bitzer
CC-WI	Custom Walk-In	Custom	5/7°C/Min	3/5°C/Min	-40 to +150°C	20-98%	±0.5-±1.0°C	R404A & R23	Copland/Bitzer

Custom chambers manufactured according to customer requirements including temperature ramp rates and size.

Key Applications of Climatic Chambers

Electronics & Semiconductor Testing

Check reliability and performance under extreme conditions. Examples: Thermal cycling, humidity exposure, and thermal shock to test PCBs, semiconductors, and battery systems.

Automotive Industry

Ensure vehicle components perform in various climates. Examples: Testing dashboards, engines, and sensors in extreme heat, cold, or humidity; simulating altitude or solar radiation.

Aerospace & Defense

Validate function and safety in harsh environments.

Materials Science

Study material degradation, fatigue, and lifespan. Examples: Corrosion testing, UV exposure, and accelerated aging of metals, plastics, and composites.

Pharmaceutical & Medical Devices

Ensure drug and device stability under controlled storage and transport conditions. Examples: ICH stability testing (temperature/humidity) for drug shelf-life and packaging integrity.

Biological Research

Simulate specific climates for biological studies. Examples: Plant growth chambers, incubators for cells or microorganisms, and climate control for animal studies.

Packaging & Logistics

Evaluate durability during storage or transport. Examples: Thermal shock and humidity testing on packaging used for food, electronics, or sensitive goods.

Building Materials & HVAC

Assess how building materials react to climate stress. Examples: Simulating temperature and humidity changes on insulation, windows, and HVAC systems.

Product Gallery
